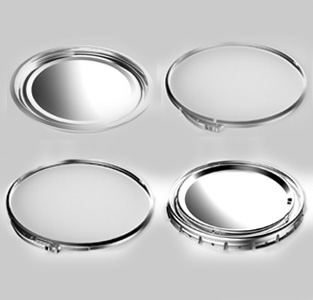

Lids for open-head pails 286/270

Artikel:
Category:	Paint

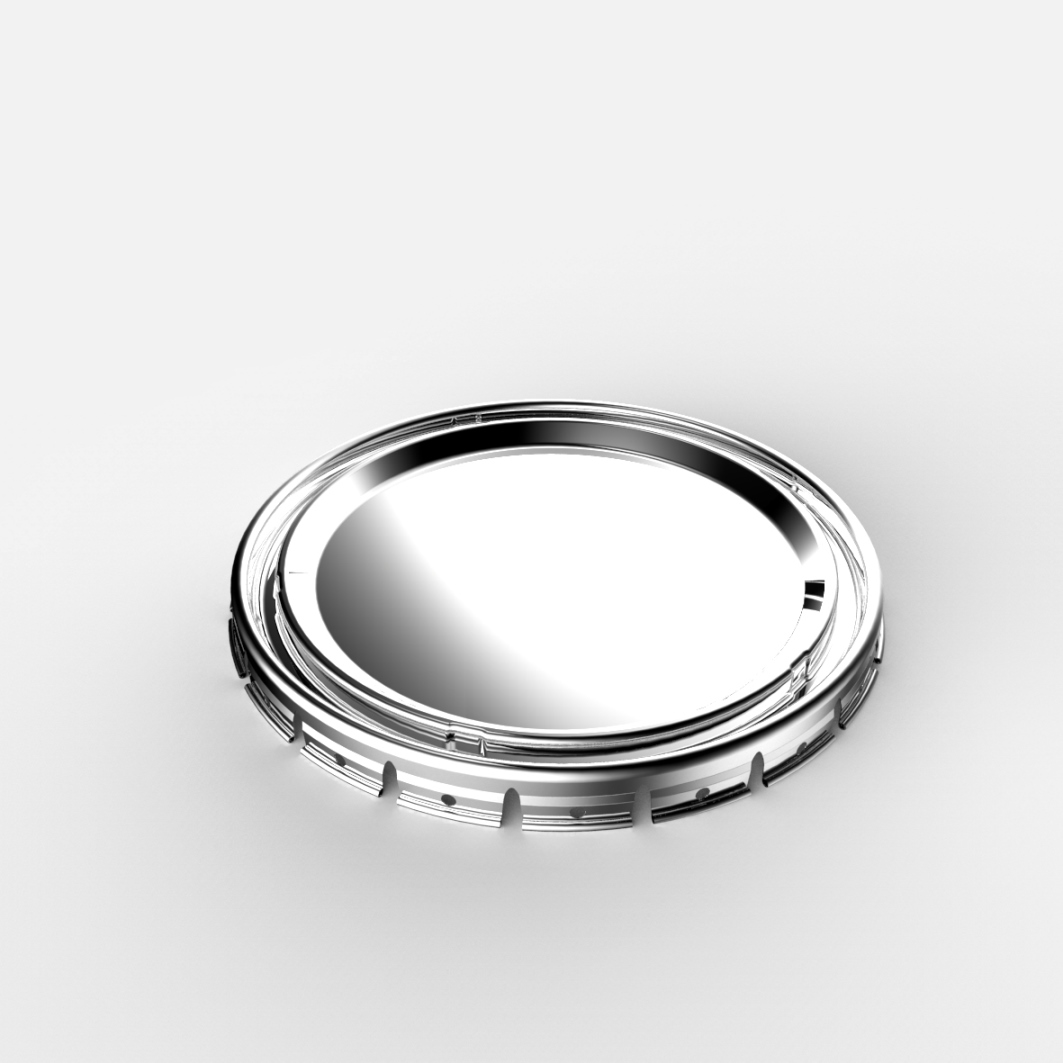

Lug lid 290S	Lug lid 290HD

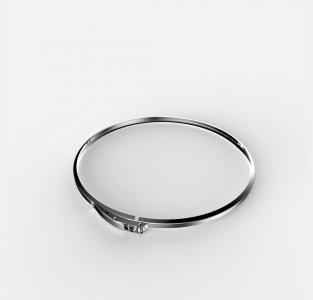

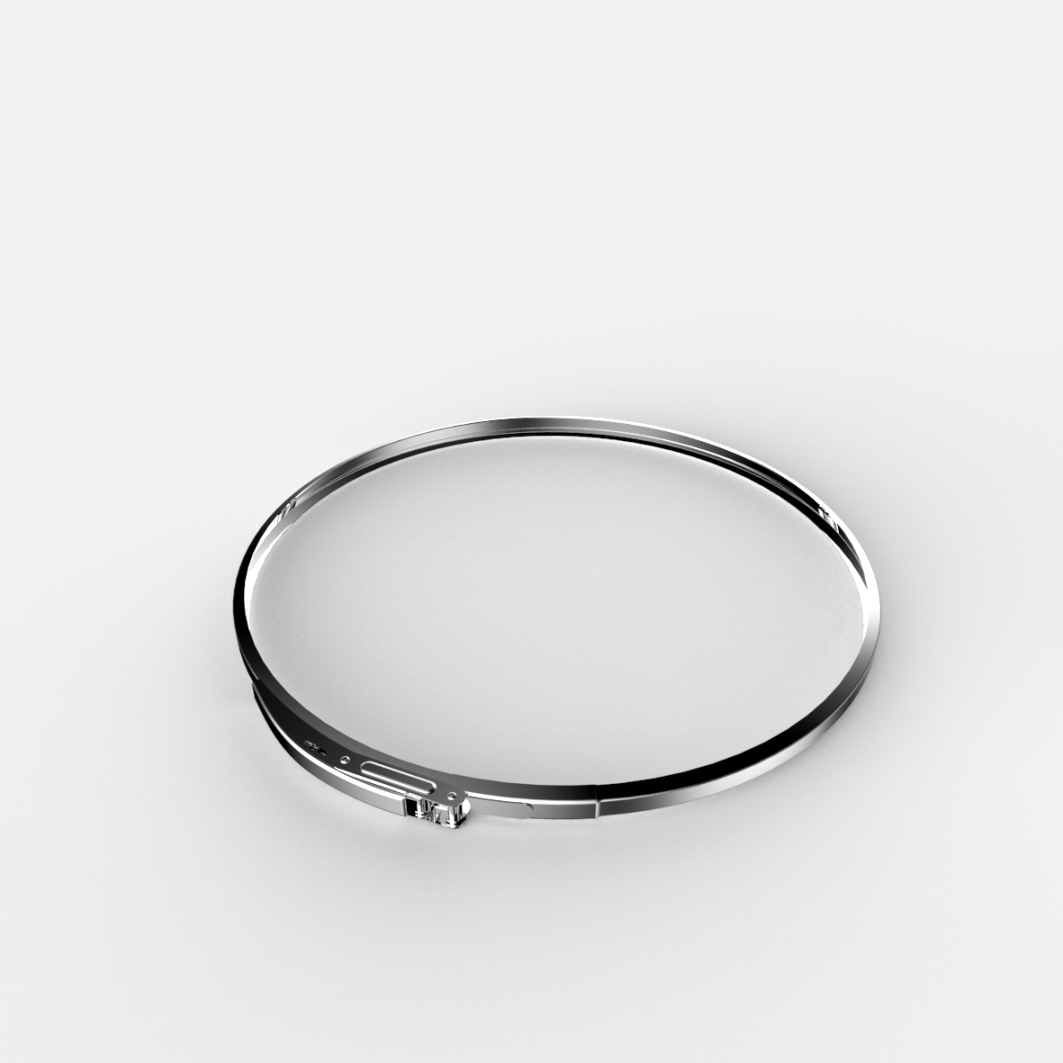

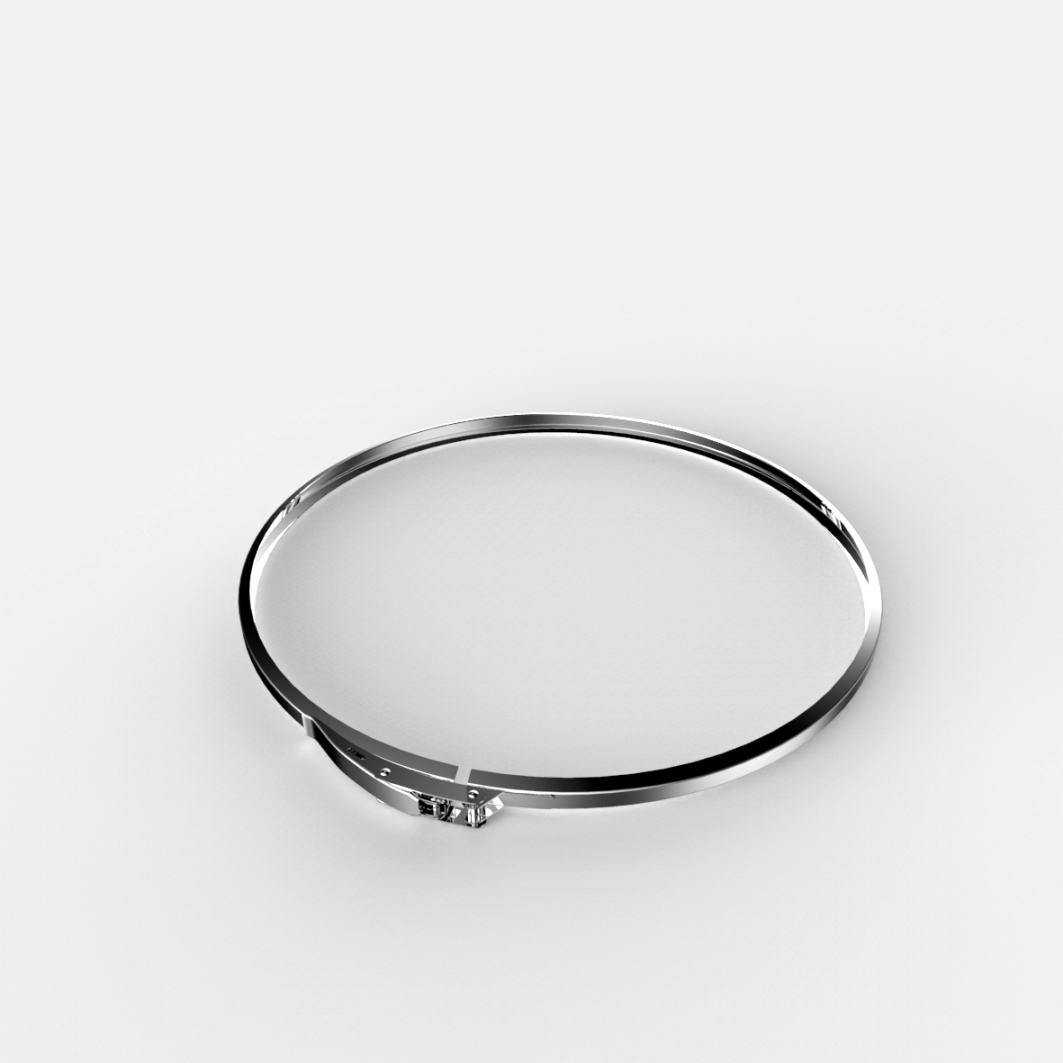

Ring lid with lever lock ring	Ring & lug lid with spout openings

APPROVALS OPEN-HEAD PAILS

Body-thickness and max size	Thickness and lid type	Approval	Maximum Density		Maximum mass
			Group II	Group III	Group II	Group III
0,38 mm 27.0L	0,38 mm RING lid HD	RID/ADR/0A2/Z35/S		1,2		35kg
0,38 mm 27.0L	0,38 mm Ring lid HD	UN/1A2/Y1.4/100	1,4	2,1
0,38 mm 25.0L	0,38 mm Ring lid HD	UN/1A2/Y40/S			40kg	40kg
0,38 mm 27.0L	0,38 mm Ring lid HD	UN/1A2/Y1.8/100	1,8	2,7
0,38 mm 18.0L	0,38 mm Ring lid HD	UN/1A2/Y30/S			30kg	30kg
0,33 mm 27.0L	0,33 mm Ring lid HD	UN/1A2/Y40/S			40kg	40kg
0,33 mm 27.0L	0,33 mm Ring lid HD	UN/1A2/Y1.4/100	1,4	2,1
0,38 mm 18.0L	0,38 mm Ring lid HD	UN/1A2/Y1.8/100	1,8	2,7
0,38 mm 27.0L	0,38 mm Ring lid HD	UN/1A2/Y1.8	1,8	2,7

N.B. UN/1A2/Y30/S with PE-inliner.
N.B. UN/1A2/Y1.8/100 with PE-inliner.
N.B. UN/1A2/Y1.8 fill opening DIN57

Body-thickness and max size	Thickness and lid type	Approval	Maximum Density		Maximum mass
			Group II	Group III	Group II	Group III
0,38 mm 27.0L	0,38 mm Lug lid HD	RID/ADR/0A2/Z35/S		1,2		35kg
0,38 mm 27.0L	0,8 mm Lug lid HD	RID/ADR/0A2/Y41/S	1,4	2,1	41kg	57kg
0,38 mm 25.0L	0,48 mm Lug lid HD	UN/1A2/Y1.4/100	1,4	2,1
0,38 mm 27.0L	0,48 mm Lug lid HD	UN/1A2/Y40/S			40kg	40kg
0,38 mm 21.0L	0,48 mm Lug lid HD	UN/1A2/Y1.8/100	1,8	2,7
0,33 mm 27.0L	0,38 mm Lug lid HD	UN/1A2/Y40/S			40kg	40kg
0,38 mm 27.0L	0,48 mm Lug lid HD	UN/1A2/Y1.8/100	1,8	1,8
0,33 mm 25.0L	0,48 mm Lug lid HD	UN/1A2/Y1.4/100	1,4	1,4
